length 1083mm SD4 Hammer Down the Hole Drill Hammer For Blasting
Technical parameter SD4 DTH hammer:
| shank | SD4 |
| Length(less bit) | 1083mm |
| External diameter | 99mm |
| Top sub thread | API 2 3/8”REG |
| Weight(less bit) | 40.9kg |
| Hole range | 110mm-130mm |
| Working pressure | 10-25bar |
| Impact rate at 17bar | 28Hz |
| Recommended rotation speed | 30-70rpm |
Product introduction:
Down-the-hole rock tools (drilling tools) are rock drilling equipment which takes compressed air as power source to partially transfer impact power into drilling holes. An air distributing device in a top hammer controls a piston to move back and forth. An impact device arranged in the front of the top hammer transfers the impact powder to a down-the-hole bit to crush rocks.
Product advantages:
1.The overall structural design is concise to minimize the probability of failure
2.Short overall length, light weight and good safety
3.The patented optimized matching design of the drill bit and the impactor maximizes the transmission efficiency of impact energy
4.The surface of the parts is treated with anti-fatigue strengthening treatment, which has a longer working life
Application:
| Product name | dth hammer |
| Application | Quarry |
| Color | Customer's Requirement |
| Usage | Ore Mining |
| Advantage | High Performance |
| Size | Standrad Size |
Our DTH drilling tools range covers the most diverse applications in mining, natural resources exploration, water wells, quarries and civil works.
Structure picture:

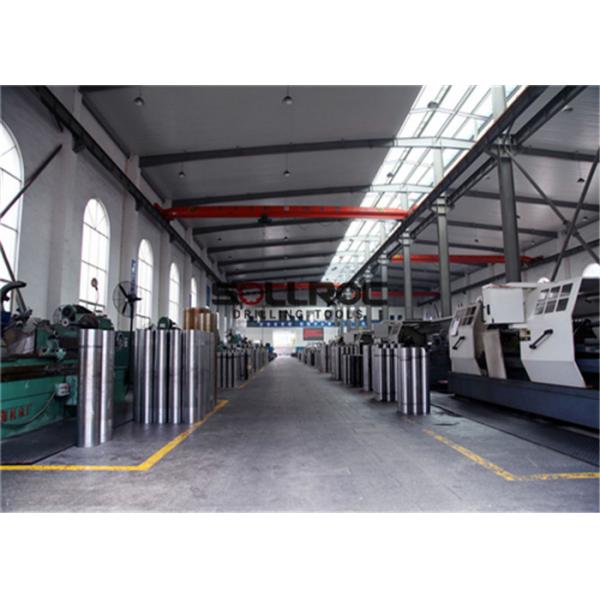

Company information:
Changsha Sollroc Engineering Equipments Co., Ltd. mainly produces rock drilling tools, including down-the-hole hammers, down-the-hole drills, reverse circulation hammers, reverse circulation drills, drill pipes, tophammer button drills, taper drill bits, and tapers Shaped drills, extension drills, drill tails, casings, rock drills and drill pipes, etc., mainly used in mining, quarrying, prospecting, and road construction projects , Dam construction, slope anchoring, tunnel excavation and anchoring projects.
Detailed photo:
